Powering Every EV Journey with Fast, Reliable Charging.

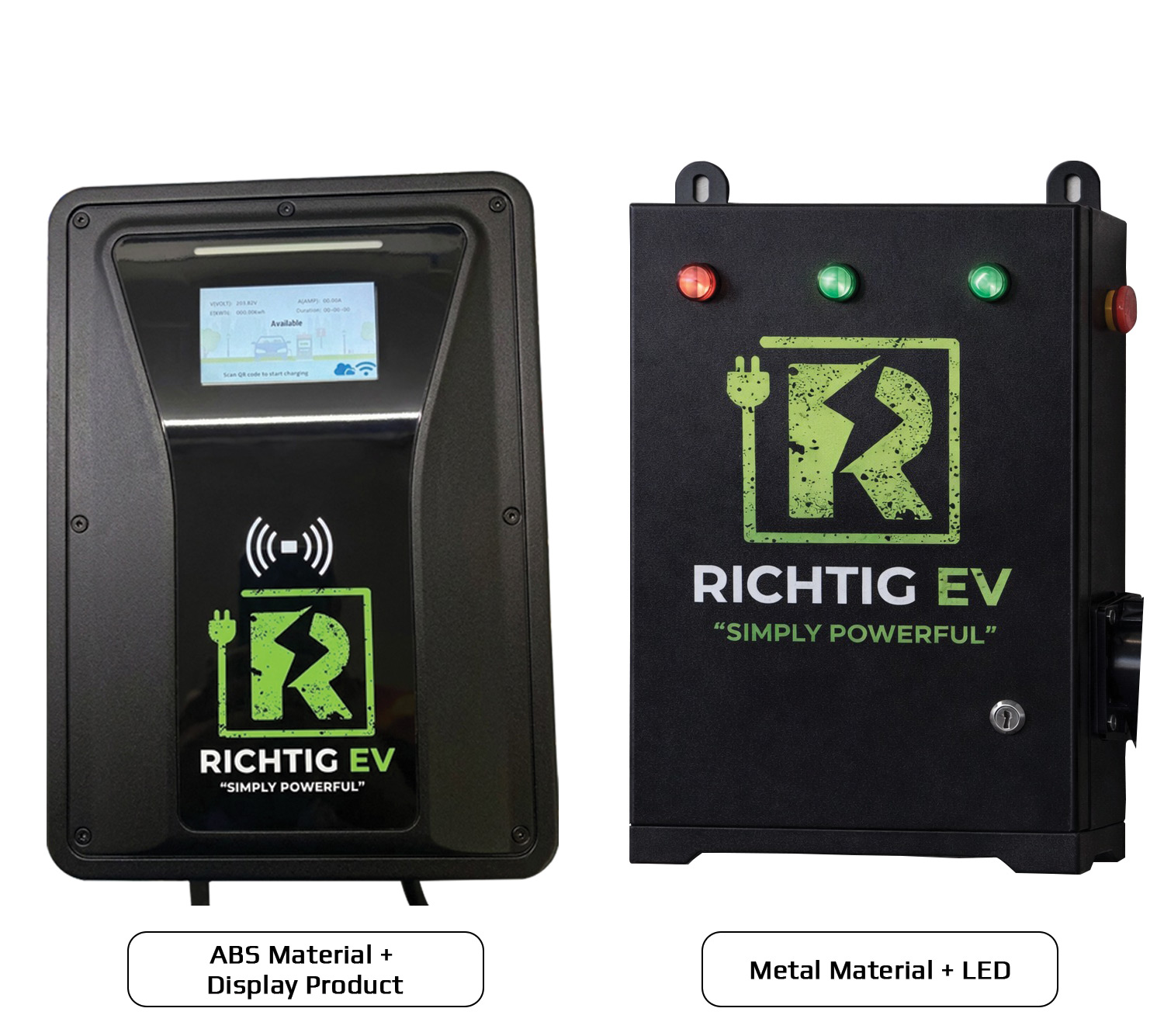

• Rated Maximum Power: 7.4kW (@230,1-phase)
• Rated Maximum Current: 32A
• MCB Recommended: 40A,2 Pole
• Input Cable Conductor Recommended Size: 3x6 sqmm,copper

• Input voltage: 230VAC 50Hz 1 Phase (L+N+PE)
• Input Current: 32A (Max)
• Leakage Protection: Type B RCD AC 30mA +DC 6mA
• Output Voltage: 230VAC +/-10%, 1-phase
• Output Current: 32A (Max)
• Standby Power: 3W
• Number of plug: 1

• Charging mode: RFID/ APP
• Charging Control: Local "Plug-and-charge" Remote: smart phone APP control (Operators Build Own App)
• Indicator lights: LED status light (Power,connect,charging & fault)
• Communication Interface: WIFI + Bluetooth
• OCPP 1.6 Compliance: YES
• Safety protection: Over current, over voltage, under voltage, over temperature , leakage , lightning, unconnected PE ground.

• Installation method: Wall Mounted, Column
• Charging Connector: Type 2,
• Charging Cable: 5m ( Standard configuration)
• Size (H * W * D): 350*230*100mm
• Net Weight: 1-Phase < 10kg,
• Colour & Material: Front Panel Black Bright silver aluminium shell
• Protection level: IP54

• Altitude: ≤2000m
• Relative humidity: 5%~95%
• Operating temperature: -10~55°C
• Storage Temperature: -40~75°C
• Operating life: ≥10000

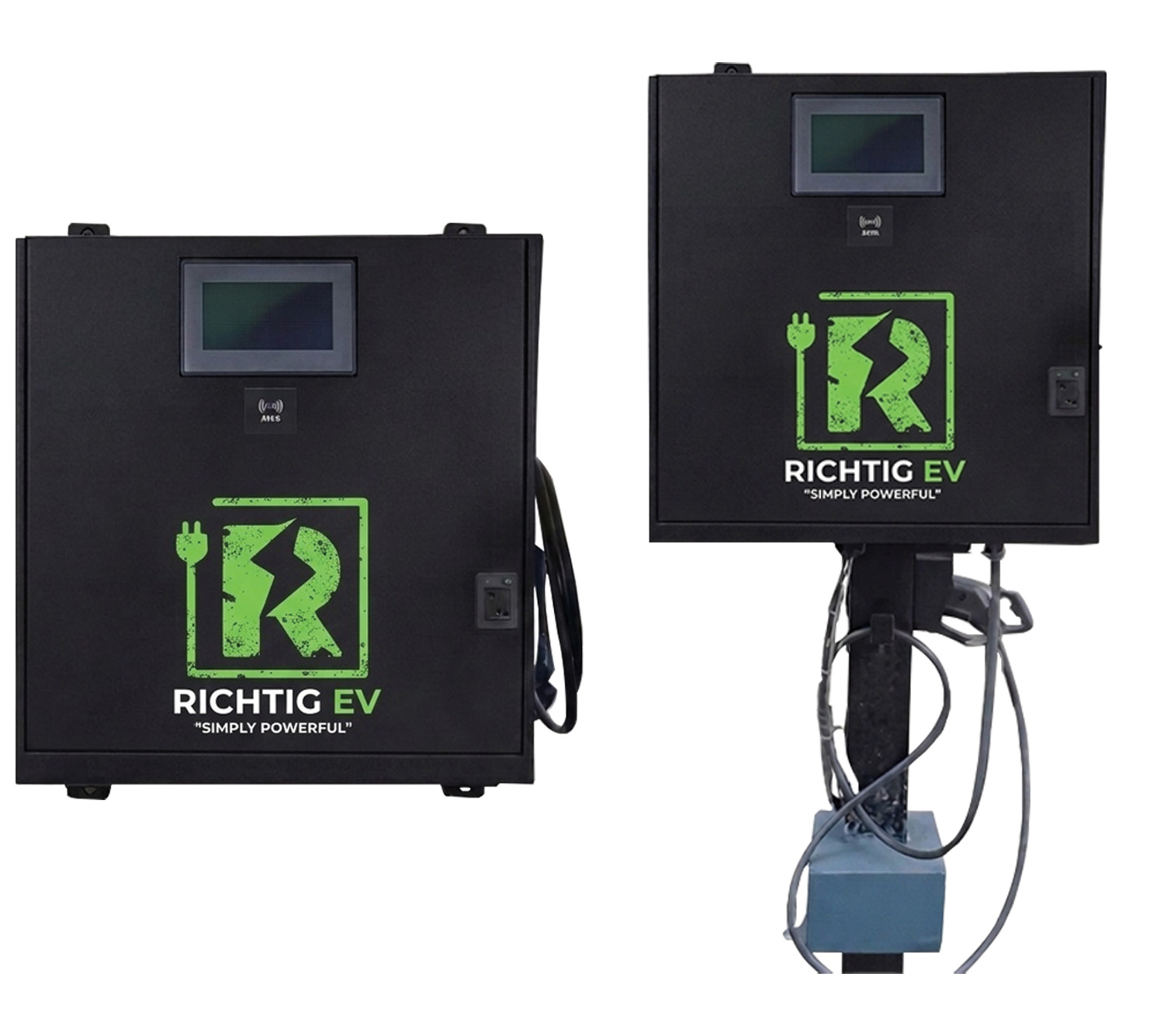

• Input voltage (VAC): 400VAC, 3Ph 4W + PE
• Input voltage range (VAC): 340-480
• Frequency (Hz): 45 ~ 55
• Power factor: 0.99
• Current THD: ≤ 5%

• Output voltage (VDC): 1000
• Output current max (A): 40A at 500 - 1000
  60A at 200-1000
• Regulation accuracy: ≤ 0.5%
• Precision of current: ≤ 1%
• The output voltage range (V): 200 ~ 1000 (standard)
• Output power max (kW): 30
• Efficiency (Peak): 93% Above.

• Packaging: Corrugated paper and plastic paper with wooden base
• Dimensions (L*H*W) mm: 550*650*250 with +/- 10mm (Approximately)
• System weight: <100 kg (Appreximately)
• Protection Grade: IP54

• Operating temperature: -10 to +55 °C (Full Load Operation)
• Storage temperature °C: -40 to +70
• Protection Function: Output short circuit / Over temperature / Input Under Voltage / Input Over Voltage / Communication failure
• Compliance: IEC61851-1/23/24
• Communication: OCPP 1.6
• CCS (COMBO ││): ISO 15118,DIN 70121
• Cooling: Forced ventilation
• Display: LCD: 7-inch Touch screen
  LED: 3 Colour LED lights
  status indicator
  RFID card
• User recognition
• DC Plugs: CCS (COMBO ││)

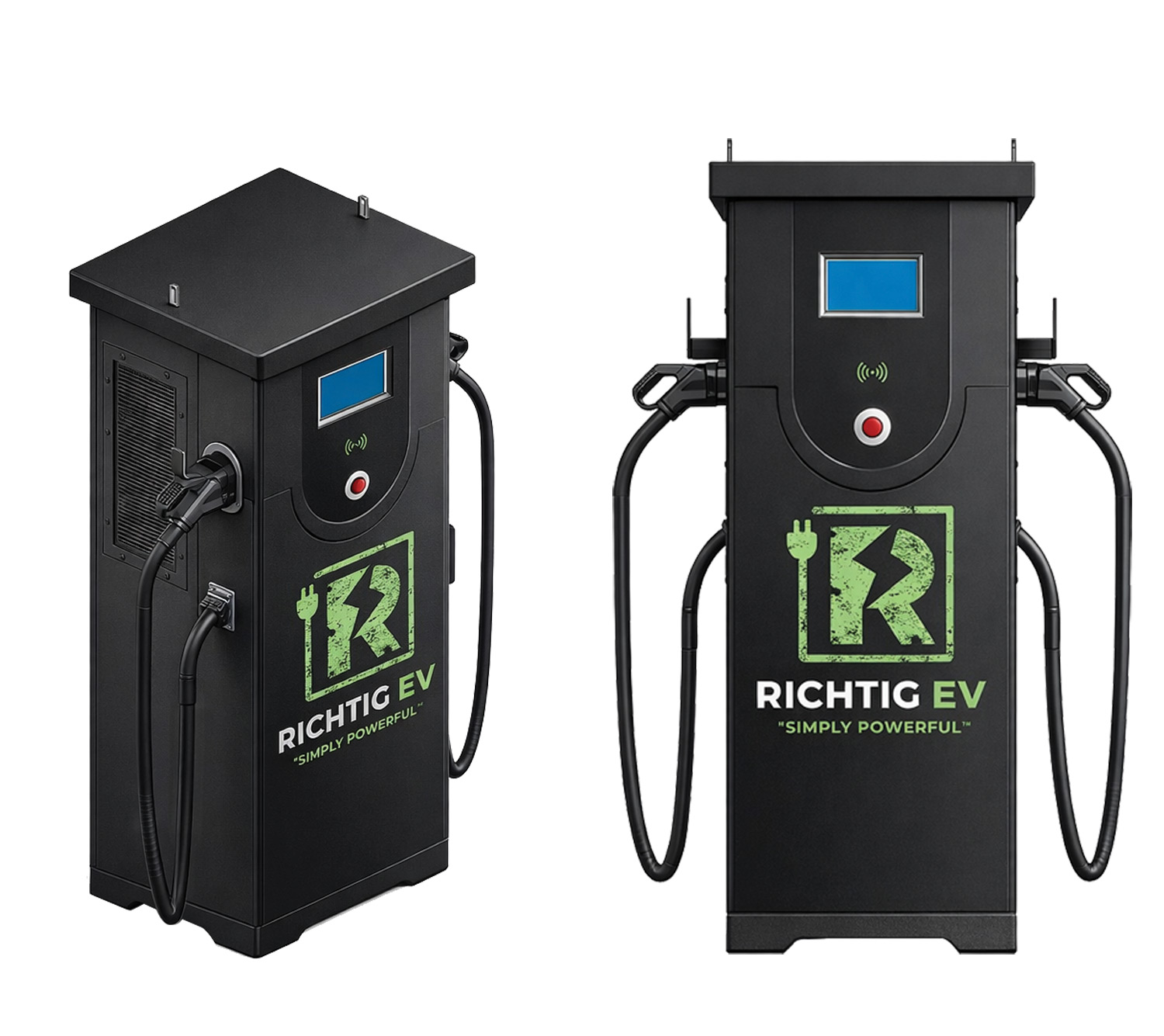

• Power: 60 kW
• Current rating: 90A
• Input Cable: 3.5C, 35Sqmm, AL, XL, PE,
  Earth-1C, 16sqmm, AL
• Incomer rating: 3P, 150A, MCCB
• Nominal Voltage: 415VAC±10%
• Frequency: 50Hz
• Power Factor: 0.99
• Current THD: ≤ 5%
• Efficiency: ≥ 96%

• Output voltage: 200-1000V
• Current: 120A@500V
• Nominal Power: 60KW(Constant Power)
• Communication protocol: ISO15118, DIN70121
• Compliance: IEC61851-1/23/24/

Over Voltage, Under Voltage, Short Circuit, Leakage Current, Over Temperature, Over Current, Surge Protection, Emergeny Shutdown

• Display: 7 Inch
• Emergency Button: Yes
• Support Language: English
• User Authentication: RFID/Mobile APP
• External Connection: LAN

• Charger and CMS: OCPP 1.6
• Charger to Vehicle: As per CCS protocol

• Ambient Temp.: 10-+55℃(Derate above 55℃
• Storage Temp: -20-+75℃
• Altitude: <2000
• Humidity: <95°non-condensing

• IP Protection: IP54
• Cooling Method: Natural Cooled
• Cable Length: 5 Mtr
• Dimension (WXHXL): 800mmX1850mmX500mm
• Install Method: Stand Alone

• Power: 120 kW
• Current rating: 175A
• Input Cable: 3.5C, 95Sqmm, Al. XL PE,
  Earth-1C, 50Sqmm, AL
• Incomer rating: 3P, 250A, MCCB
• Nominal Voltage: 415VAC±10%
• Frequency: 50Hz
• Power Factor: 0.99
• Current THD: ≤5%
• Efficiency: ≥96%

• Output voltage: 200-1000V
• Max Power (Dual Mode): 60KW(75A@800V)
• Max Power (Single Mode): 120KW(150A@800V)
• Nominal Power: 120KW (Constant Power)
• Communication protocol: ISO15118, DIN70121
• Compliance: IEC61851-1/23/24/

Over Voltage, Under Voltage, Short Circuit, Leakage Current, Over Temperature, Over Current, Surge Protection, Emergeny Shutdown

• Display: 7 Inch
• Emergency Button: Yes.
• Support Language: English
• User Authentication: RFID/Mobile APP
• External Connection: LAN

• Charger and CMS: OCPP 1.6
• Charger to Vehicle: As per CCS protocol

• Ambient Temp.: 10-+55℃(Derate above 55℃
• Storage Temp: -20-+75℃
• Altitude: <2000
• Humidity: <95°non-condensing

• IP Protection: IP54
• Cooling Method: Natural Cooled
• Cable Length: 5 Mtr
• Dimension (WXHXL): 1200mmX1950mmX750mm
• Install Method: Stand Alone
